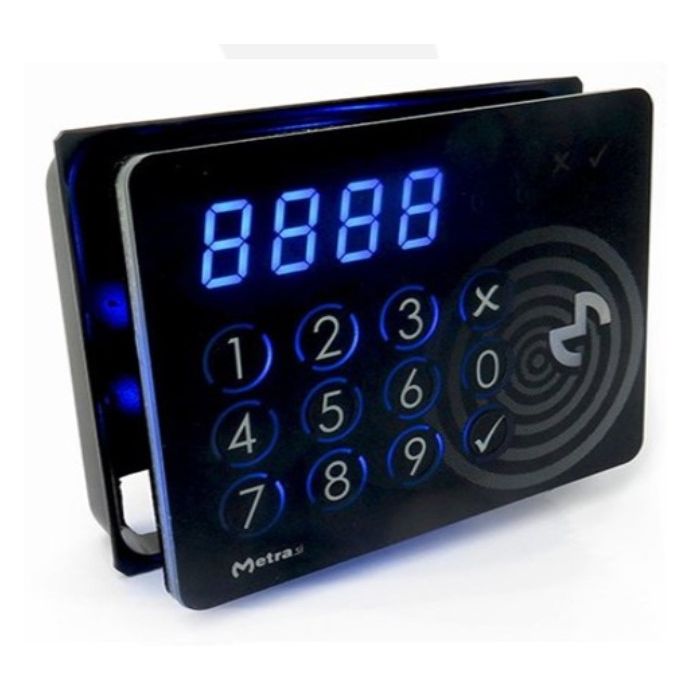

Original Metra Display with rfid mifare reader
Metra Reader Terminal is a user interface for Metra ELS NET Systems and reading RFID tickets as locker keys is its main function. The locker number is shown using four digit LED display, after RFID tickets assigned parameters have been checked.
Manufacturer: Metra
Product Name: MDS Display ISO
The Display ISO is a versatile user interface designed for seamless integration with Metra’s electronic locking systems. It supports reading ISO codes and Mifare-compatible RFID credentials such as locker keys and displays.
-
Clearly shows assigned locker numbers on a four-digit LED display
-
Equipped with an integrated 12-key keypad for enhanced user interaction
-
Alerts users and staff with an acoustic alarm in case of unauthorized access attempts
-
Flexible locker assignment based on the lock controller, system setup, locker design, and facility layout
-
Designed for high-traffic environments and secure locker management
Technical Documents:
-
Technical datasheet
-
Printable A4 poster (customizable locker number instructions for user guidance)
Technical Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 12V DC (powered via MEW connection) |
| Current Consumption | 0.15 A average / 0.35 A peak |
| Power Consumption | Avg. 43 Wh/day (usage/standby ratio: 1:4) |
| Operating Temperature | 0°C to +50°C |
| Audio Feedback | Integrated piezo buzzer |
| Visual Feedback | 4-digit LED display + 4 status LEDs + flashing logo |
| RFID Antenna | Passive, 13.56 MHz frequency |
| RFID Reader | ISO 15693, ISO 14443A/B, Mifare-compatible |
| Connectivity | 2x Metra MEW ports |
| Dimensions (W/H/D) | 110 x 85 mm |
