Cabin Essence AHR3
For high-quality sanitary partition walls, you’ve come to the right place.

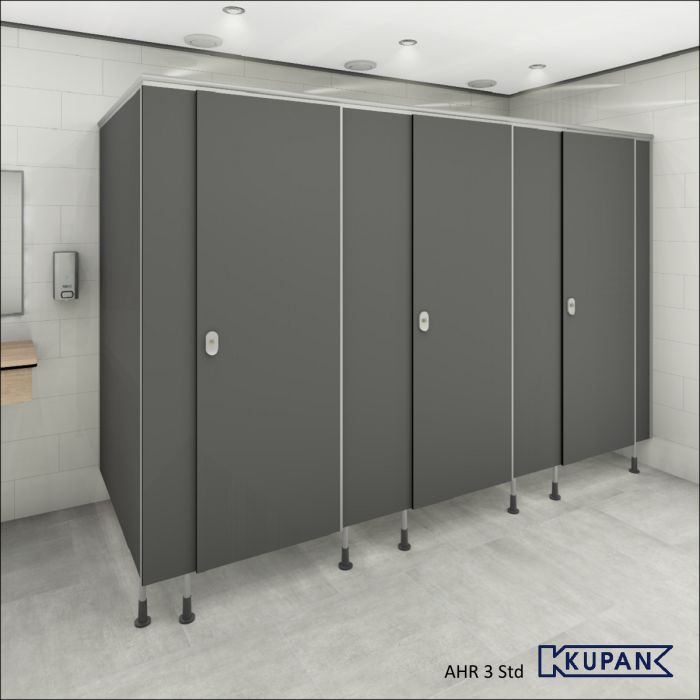

Kupan has over 50 years of experience with numerous sanitary partitioning systems, including the Cabin Essence AHR3. This sanitary cabin is designed for installation against two structural walls (rear and right side).
The partitions are mounted above the floor and equipped with adjustable feet. Kupan features a unique, patented translational hinge for its Essence cabins. This hinge rotates 180 degrees and is maintenance-free. It has been extensively tested and has successfully passed over 1 million door openings, which corresponds to 25 years of daily use at 50 openings per day.
The sanitary partitions are fully pre-drilled and supplied with all necessary mounting materials, making the cabin quick and easy to install.
For additional support, you can [download the installation manual here].
Kupan also guarantees fast delivery. If required, sanitary partitions can be delivered within 10 working days!
The Cabin Essence AHR3 is perfectly suited for schools, sports facilities, swimming pools, healthcare institutions, campsites, hotels, holiday parks, public restrooms, industrial companies, and many other application areas.
For every environment, Kupan offers the best solution for your project!
Unique features of the sanitary partition walls:
-
Long service life
-
Floor-mounted adjustable feet
-
Door lift-off protection
-
Soft-close with optional coat hook ([click here for more information])
-
Available in many colours
-
180-degree door opening
-
Designed for heavy-duty use
-
Moisture-resistant, hygienic, and maintenance-free
-
Finger-safe, child-friendly, and maintenance-free hinge
-
Kupan aluminium lock with free/occupied indicator
Technical Specifications – Cabin Essence AHR3
| Specification | Details |
|---|---|
| Application | Suitable for installation against structural walls |
| Material | 13 mm compact solid grade HPL, water-resistant |
| Total height | 2047 mm |
| Clear walk-through height | 2000 mm |
| Clear floor space | 180 mm |
| Maximum width | 3350 mm |
| Maximum depth | 1350 mm |
| Door width | 600 mm (passage width: 585 mm) |
| Door swing direction | Left / Right |
| Profile | Aluminium, clear anodised |
| Pre-drilled | Yes, including all fixing materials |
| Colours | Available in a wide range of colours – [Click here for colour collection] |
